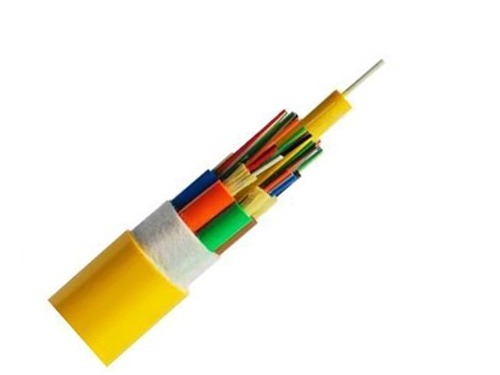

Indoor break out optic cable.02~12 fiber, Φ900μm Tight buffer fiber, Aramid yarn, PVC/LSZH Jacket.
|
|
02 |
04 |
06 |
08 |
10 |
12 |
|
Cable Diameter (mm) |
7.2±0.5 |
7.2±0.5 |
8.3±0.5 |
9.4±0.5 |
10.7±0.5 |
12.2±0.5 |
|
Cable Weight (kg/km) |
45 |
45.2 |
62.5 |
85.9 |
109 |
140 |
|
TBF Diameter |
900±50μm |
|||||
|
Tensile Strength |
Long term |
200N |
|
Short term |
660N |
|
|
Crush Resistance |
Long term |
300N/100mm |
|
Short term |
1000N/100mm |
|
|
Bending Radius |
Dynamic |
20×D (Cable Diameter) |
|
Static |
10×D (Cable Diameter) |
