Dome Fiber Optic Splice Closure

Dome Fiber Optic Splice Closure
Item : FOSC400-B4
Brand : ATTRAISE

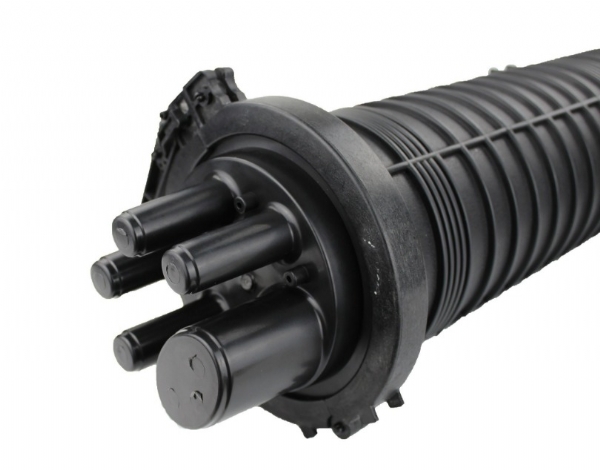

FOSC400-B4 fiber optic splice closures are specially designed to protect joints of optic cable. Excessive fibers can be stored in storage baskets behind the splice trays. The optical fibers are taken into from middle of splice tray. One tray can accommodate up to 24 fiber splices; Per closure can accommodate up to 6 trays. The dome material mixed chemical agent to resist corrosion and aging and also provide ultra-violet protection.

Excessive fibers can be stored in storage baskets. Easy in fiber management
Fabricated by mixing the imported material and other chemical assistant agent (ageing resistance & ultraviolet radiation resistance), increase of service life
Base-to-dome seals on closure are mechanical and heat-shrinkable for ease of installation and reentry. No other sealing adhesive tape is needed

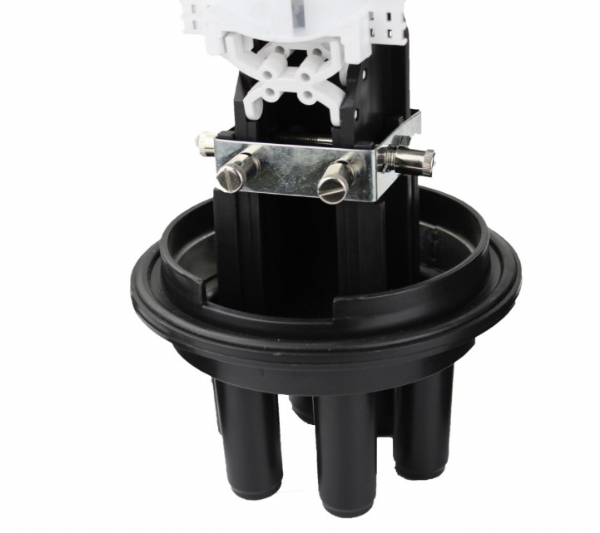

Base and dome sealed with clamp and O-ring system
The splice trays are hinged for access to any splice without disturbing others trays
The inner parts and fixing parts are made of stainless steel
Closure with a earthing device protect it from damage by lightning
Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, handhole, manhole)and in many applications(tap-off, expressed, branch, and repair)
No special tools are needed to open the closure, and it can be opened and used repeatedly

Dimension(mm)	540150180
Max.Capacity	144c
Atmospheric Pressure	70~150Kpa
Axial Tension	>2000N/1min;
Insulation resistance	>2*104MΩ
Stretching Resistance	2,500N/10cm2 (1min)
Voltage Strength	15KV/1min, no arcover or breakdown
Splice tray with optical taking-in radius	≥ 40mm. Low optical loss
Working Temperature	-40C To +70C
