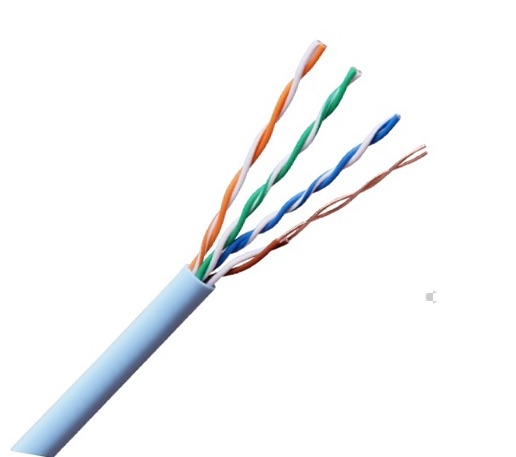

The Category 5e standard is an enhanced version of Cat 5 cable, which is optimized to reduce crosstalk, or the unwanted transmission of signals between data channels. This category works for 10/100 Mbps and 1000 Mbps (Gigabit) Ethernet, and it has become the most widely used category of Ethernet cable available on the market. While Cat 5 is common in existing installations, Cat 5e has completely replaced it in new installations.
|
Items |
Descriptions |
|
|
Conductor |
Material |
Solid annealed copper |
|
Diameter |
0.5mm |
|
|
Tensile elongation |
≧15% |
|
|
Pair twist |
|
twist color of insulation |
|
group |
1.White, blue |
|
|
2.White, orange |
||
|
3.White, green |
||
|
4.White, brown |
||
|

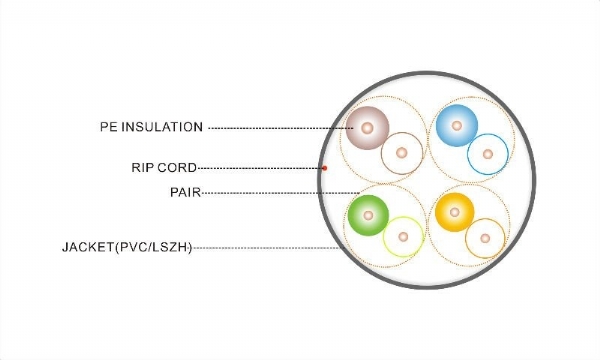

Insulation |
Material |
High Density Polyethylene(HDPE) insulation |
|
thickness |
0.92±0.05mm |
|
|
Tensile elongation |
≧300% |
|
|
Rip cord |
Material |
nylon |
|
inner jacket |
Material |
PE |
|
Sheathed |
Material |
PVC |
|
Packing |
305m/roll; carton |
|
|
Test Voltage |
1.0KVDC at 1 minute |
|
Spark test |
2.2~2.5KV |
|
Characteristics Impedance |
100Ω+/-15% at ≤100MHz |
|
Operating Temperature |
-30°C ~70°C |
|
Installation Temperature |
15°C ~40°C |
|
Insulation Resistance |
7000MΩ/km |
